Radar & High-Power Equipment Cooling
Engineered Cooling for Demanding Power Densities

For decades, AMETEK Rotron has supported radar and high‑power electronic systems with cooling solutions designed for continuous operation under intense thermal loads across ground‑based, naval, and airborne platforms. Our vertically integrated approach provides full control over aerodynamic design, manufacturing, assembly, and qualification testing, allowing us to develop cooling systems precisely aligned with the performance, reliability, and environmental requirements of radar and power electronics. In addition to individual fans and blowers, we engineer complete cooling assemblies, including high‑capacity airflow systems, heat exchangers, and integrated thermal systems, tailored to specific power levels, duty cycles, and operating conditions to ensure long‑term durability in demanding applications.

Field-Proven Products
Our Solutions
AMETEK Rotron supports specialized platforms with custom-engineered thermal solutions that draw on decades of aerospace and defense experience and a long track record across proven, in-service applications.



Maxiax Large Vaneaxial Fans

Maxiax fans deliver high-pressure airflow well-suited for radar cabinets and high-power electronics where air must move through dense, resistive packaging. Their design supports reliable thermal control in demanding defense and aerospace electronics environments.

Fan Type Vaneaxial
Typical Size 3.56" - 9.25" OD
Typical Weight 1.35 - 20 lbs.
Max Airflow (CFM) 3000 CFM
Max Pressure (IWG) 43 In. H2O
Power Consumption 75 - 3500W
Download Datasheets

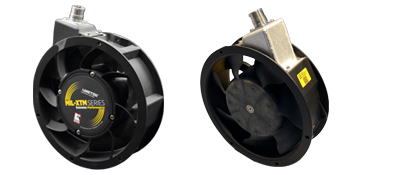

MilXTM Fans

XTM Fans

MILXTM fans are designed for rugged radar and high-power electronics applications that demand stable airflow under vibration, temperature extremes, and electrical stress.

Fan Type Tubeaxial
Typical Size 6.75" OD
Typical Weight 2.5 lbs.
Max Airflow (CFM) 500 CFM
Max Pressure (IWG) 3.95 in. H2O
Power Consumption 225w
Download Datasheets

Duplex Blowers

Duplex blowers provide airflow for radar systems and high-power electronics where continued cooling is required even during component degradation. This architecture supports system availability in platforms where maintenance access is limited.

Blower Type Duplex
Typical Size 6.5 - 14.74" Diameter & 14.5-20" Long
Typical Weight 6 - 20 lbs.
Max Airflow (CFM) 25 - 14000 CFM
Max Pressure (IWG) 1 - 4.5 In. H20
Power Consumption 130 - 2000 W
Learn More

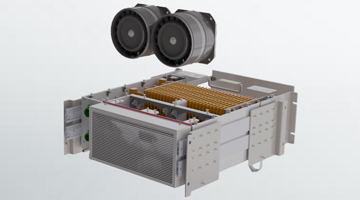

Custom Cooling Assemblies

AMETEK Rotron specializes in custom cooling assemblies such as smoke extraction fan systems and spot cooling solutions that integrate housings, controls, wiring, and environmental protections tailored to the specific operating conditions.

Cooling Capacity 1–10kW+
Standard Rack Mount Heights 3U, 4U, 6U+
Water Cooled Heat Exchangers Equipped, if needed
Input Power All Common AC & DC inputs
 Learn More
MARKET-SPECIFIC APPLICATION SOLUTIONS
Supporting Specialized Platforms
Rotron supports specialized platforms with custom-engineered thermal solutions that draw on decades of aerospace and defense experience and a long track record across proven, in-service applications.
mil aero

Military Aerospace

Common Applications
  • Avionics module cooling
  • Central Circulation
  • Cockpit Display Cooling
  • TRU / Power Supply cooling
Major Customers
  • Bell
  • Boeing
  • Boeing‑SAAB
  • Embraer
  • General Atomics
  • General Dynamics
  • Lockheed Martin
Key Programs
  • A-1M
  • A-29 EMB 314 Super Tucano
  • AMX
  • C130 Hercules (many variants)
  • E-3 Sentry AWACS
  • E-6 Mercury
  • E-7 Wedgetail
  • F-15 Eagle
  • F-16 Fighting Falcon
  • F-18 Hornet / Super Hornet
  • F-22 Raptor
  • F-35 Lightning
  • KC-46 Pegasus Tanker
  • P-3C Orion
  • P-8 Poseidon
  • T-7 Boeing‑Saab Red Hawk
  • V-22 Osprey
Commercial Aerospace

Commercial Aerospace

Common Applications
  • APU Cooling
  • Avionics Bay Cooling
  • On-Engine Cooling
  • Nose Bay & Radio Rack Cooling
  • TRU / Power Supply Cooling
Major Customers
  • Airbus
  • Boeing
  • Bombardier
  • Dassault
  • DeHavilland
  • Fokker
  • Gulfstream
  • SAAB
Key Programs
  • 787
  • 737, 737‑200, 737‑400
  • 757, 757‑200
  • 767, 767‑300
  • A320NEO, A330, A350, A380
  • All Gulfstream Aircraft
  • Challenger
  • EM‑120
  • EMB 135 & 145
  • Falcon 10,50, 200, 900, 2000
  • Lear 45
  • Lineage 1000
  • MD‑80, 88, 90
  • Q300, Q400
  • SAAB 2000, 340
UAV

UAV

Common Applications
  • Avionics Bay Cooling for UAV Flight Computers
  • Black Box & Mission System Cooling
  • Electro‑Optic / Sensor Payload Cooling
  • Navigation & Guidance Module Cooling
Major Customers

  • Anduril

  • Boeing

  • General Atomics

  • Northrup Grumman

Key Programs
  • MQ-1/C
  • MQ-9A/B
  • MQ-25 Stingray
  • RQ-4 Global Hawk
Missile and Radar

Missile & Radar Systems

Common Applications
  • Missile guidance electronics cooling
  • Power system cooling
  • Radar Array Cooling
Major Customers
  • Diehl
  • Lockheed Martin
  • Raytheon
Key programs
  • AN/TPY-4
  • AN/TPQ-53
  • AN/SPY-6
  • MIM-104 Patriot
  • IRIS-T SL
  • THAAD
Helicopter

Helicopters

Common Applications
  • Avionics rack cooling
  • Cabin evaporator systems
  • Rack-mounted electronics fans
  • TRU / Power Supply Cooling
Major Customers
  • Bell Helicopter
  • Lockheed Martin
  • Mitsubishi
  • Rockwell Collins
  • Sikorsky
  • TAI
Key Programs
  • Bell 407 / 427
  • Bell 525
  • JATAS
  • MH‑60K
  • S‑76D
  • S‑92
Ground Vehicles

Ground Vehicles

Common Applications
  • APU cooling
  • Battery Box Circulation
  • Counter IED Systems
  • Engine cooling
  • Scavenge Systems
Major Customers
  • Aero Sekur
  • AM General
  • BAE
  • Behr
  • General Dynamics
  • Lockheed Martin
  • Panhard
  • Raytheon
  • Rheinmetall
  • United Defense
Key Programs
  • 3DELRR mobile ground radar
  • Bradley Fighting Vehicle
  • HMMWV
  • LAV III
  • Leopard II MBT
  • M1 Grizzly Breacher
  • Marder 1A3 IFV
  • Mobile Analytical Lab System
  • Stryker ACV
  • TPQ‑47 mobile ground radar
  • TPQ‑53 mobile counter fire radar
  • VBL LAV
Naval

Naval Defense

Common Applications
  • Payload Module Control Cooling
  • Power Transformer Cooling
  • Radar and Electronics Enclosures
  • Sonar Array Cooling
Major Customers
  • General Dynamics Electric Boat
  • Leonardo DRS
  • Lockheed Martin
  • Northrop Grumman
  • Raytheon
  • Ultra Electronics
Key Platforms
  • Arleigh Burke‑Class Destroyer
  • Columbia‑Class Submarine
  • Constellation‑Class Frigates
  • Ohio‑Class Submarine
  • San Antonio‑Class Transport Dock
  • Ticonderoga‑Class Cruiser
  • Vanguard‑Class Submarine
  • Virginia‑Class Submarine
APPLICATION EXAMPLES
Proven Performance
AMETEK Rotron fans and blowers have a long history of successful operation across diverse platforms, from aerospace systems to rugged defense applications, where designs proven in real operating conditions continue to be selected for new programs based on demonstrated durability and consistent performance.

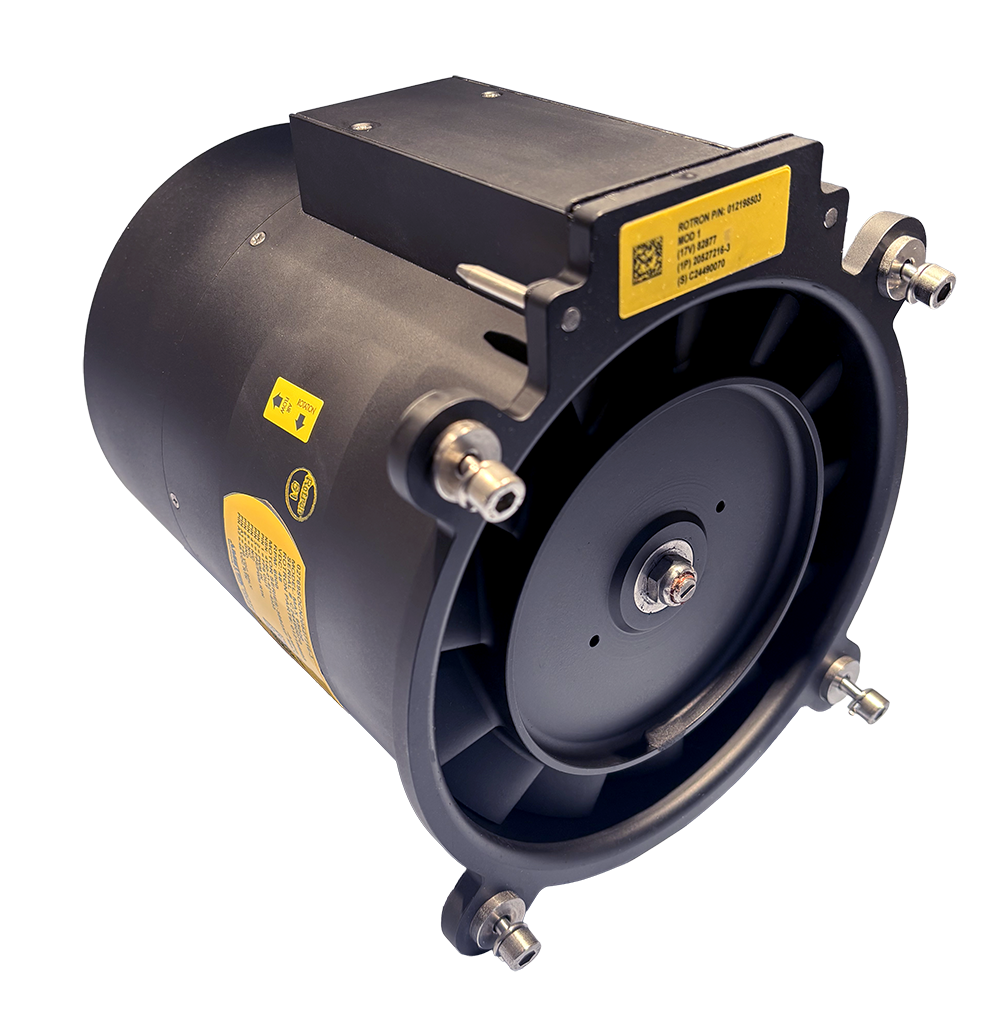

Max 6.5 Fan

Pedestal Electronics Cooling for Counter‑Fire Radar Systems

The Maxiax 6.5 is used for array electronics cooling on the AN/TPQ‑53 radar system, supporting high heat loads within a mobile, ground‑based counter‑fire platform. Designed as part of a multi‑fan radar suite, this fan balances airflow efficiency with rugged construction to operate reliably in harsh environments driven by vibration, sand, and wide temperature swings.

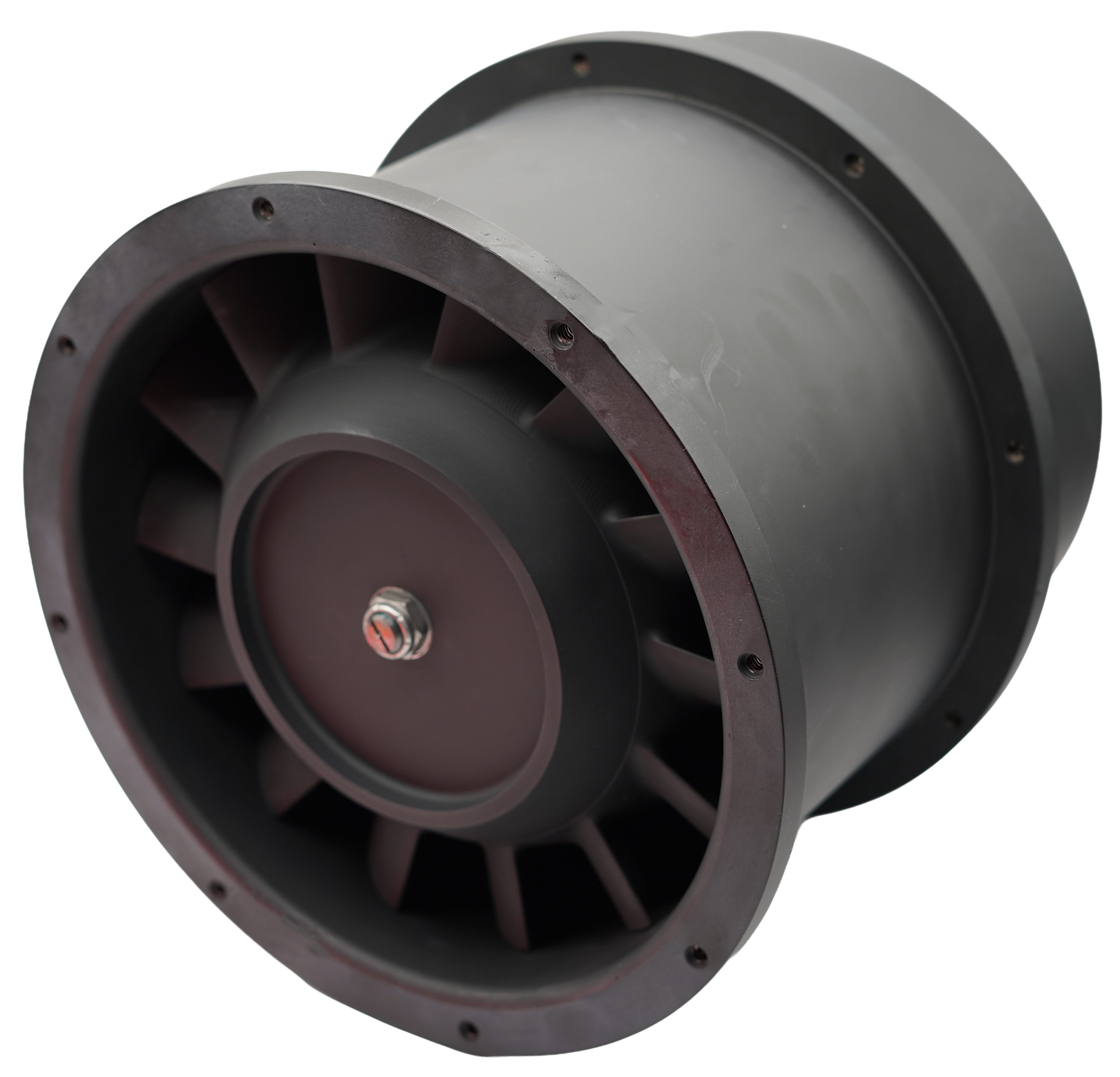

Maxiax fan

Central Power Cooling for 360° Surveillance Radar

This DC MAXIAX fan was developed for central power cooling within the TPY‑4 air surveillance radar system, where efficiency and electrical performance were tightly constrained by the available power architecture. After initial builds, the fan was refined to reduce power draw while maintaining required airflow, reflecting Rotron’s experience adapting proven designs to demanding radar electronics applications.

Max 8 Fan

Radar Array Cooling for High‑Density AESA Systems

The Maxiax 8 provides array cooling for the TPY‑4 radar, where more than 11,000 CFM is required to manage heat generated by densely packed array electronics. Customized speed control logic was incorporated to address complex airflow paths and minimize hot spots, demonstrating Rotron’s ability to tailor high‑flow fans for large, power‑intensive radar systems.

Aximax 2

Tactical Radar Cooling with Integrated EMI Mitigation

The DC Aximax 2 supports the Starlite small tactical radar, where thermal management and EMI compliance are both critical system drivers. This fan integrates onboard EMI filtering and environmental hardening, allowing it to operate within compact radar electronics while meeting demanding military qualification requirements.

Common Apllications
Reliable Solutions for Every Application
Rotron delivers reliable cooling solutions engineered to perform consistently across every application, in the harshest aerospace and defense environments. With proven designs and rigorous testing behind every product, Rotron helps ensure critical systems stay cool, stable, and dependable.
High Power Equipment & Sensing Systems
  • Antennae Array Cooling
  • High-Power Processor Cooling
  • Imaging Sensor Cooling
  • Radar Antennae Cooling
  • Radar Cooling
Aircraft Mechanical Systems
  • APU Cooling
  • ECS Systems
  • Engine Scavenge Fan
  • Heater Blower
  • Thermal Bank Cooling

Contact Us
Contact an application engineer for more information—we’re happy to help you find the right solution.
